CMLA -电动推杆

发布日期:2020-10-24

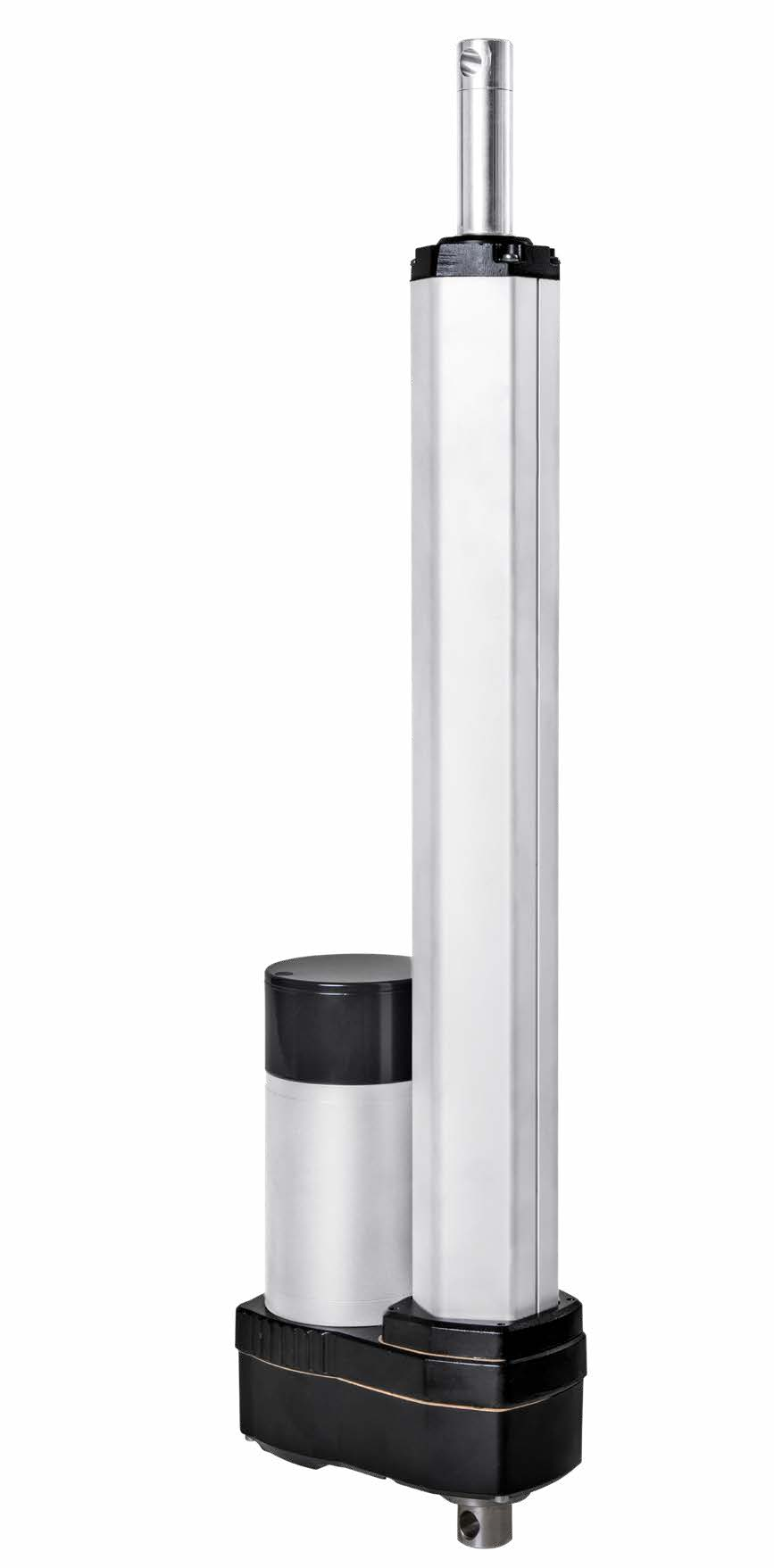

CMLA Electromechanical linear actuator

Design features/设计特点

§ 4 different sizes with max. axial loads of

P50: 5.5 kN

P70: 7.5 kN

P90: 9.0 kN

P125: 12.5 kN

§ Low maintenance  thanks to lifetime lubrication with high-quality lubricants

§ High lifting speeds  thanks to lifetime lubrication with high-quality lubricants

§ Long lifetime  thanks to case-hardened gears and bronze driving nut.  No power-transmitting components made of plastic

§ Three-phase motor AC 3Ph 400 V, 50 Hz (standard).  Optional for P50 and P70 DC 24 V DC motor

§ Protection class IP 65

§ Lift limitation with mechanical limit switch (not adjustable). Optional with outside and adjustable magnetic switch

§ Self-locking trapezoidal screw optional with ball screw (Ku)

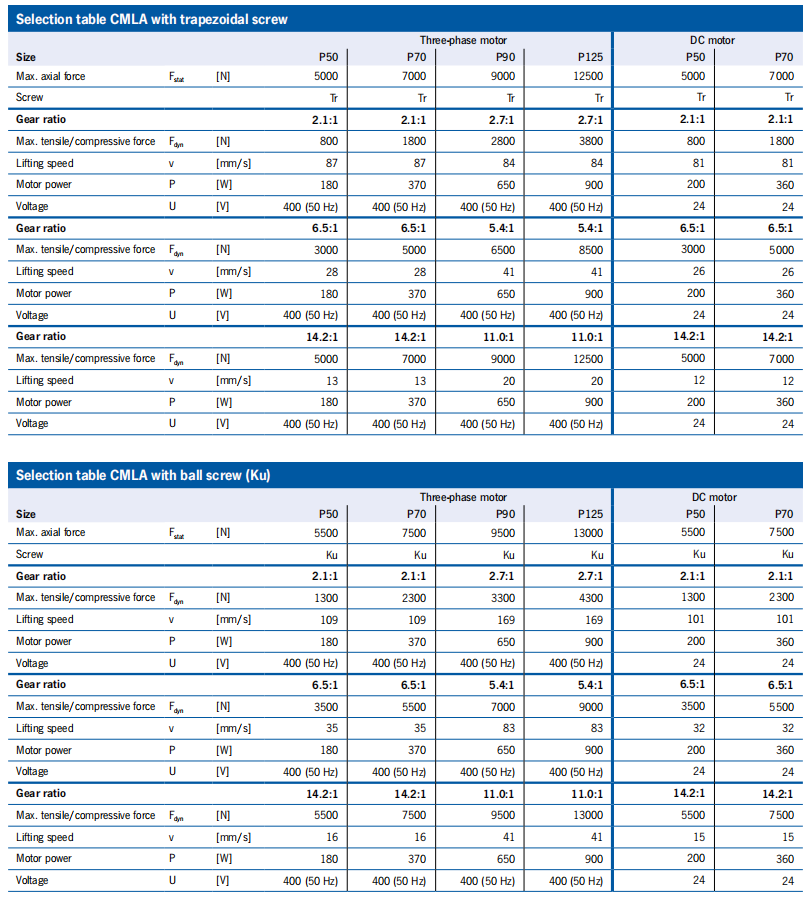

CMLA Selection tables

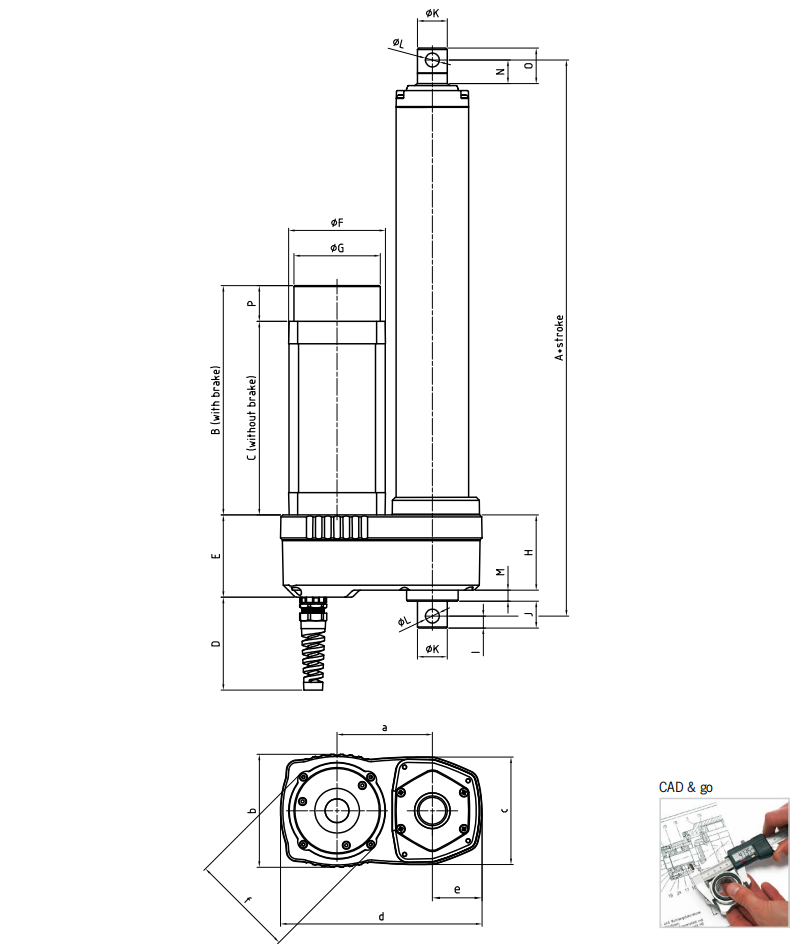

CMLA P50, P70, P90, P125 Technical drawing

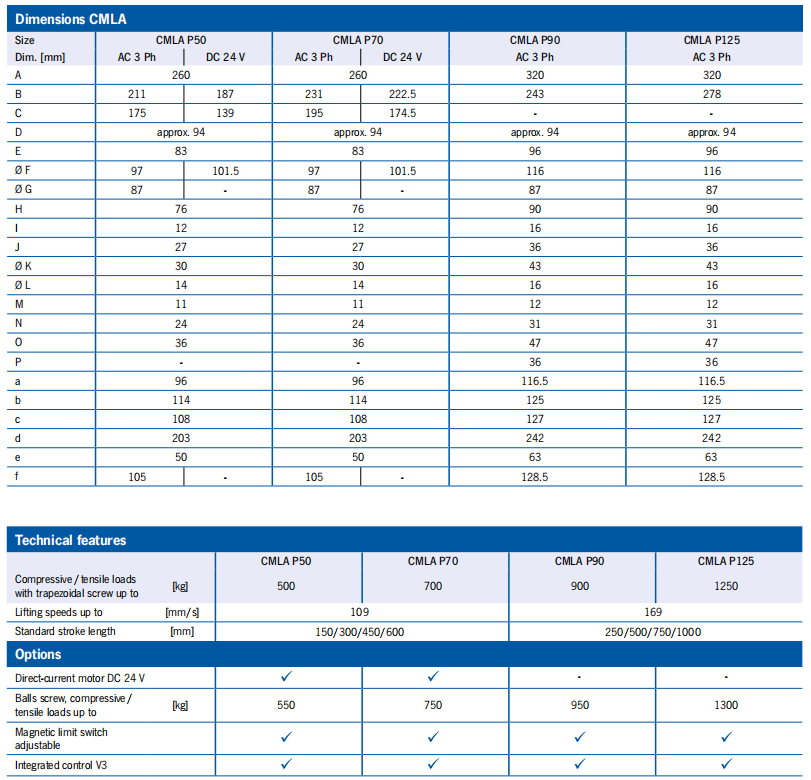

CMLA P50, P70, P90, P125 Dimensions

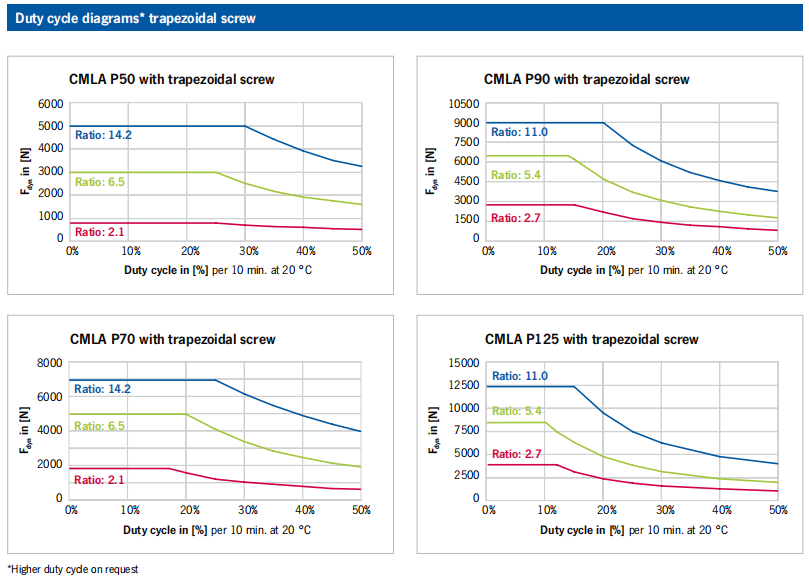

CMLA Duty cycle diagrams

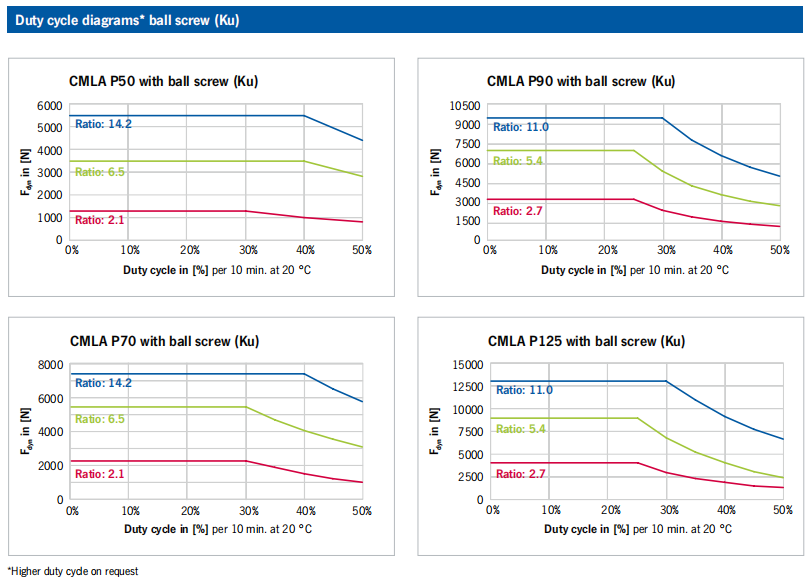

CMLA Duty cycle diagrams

CMLA Option

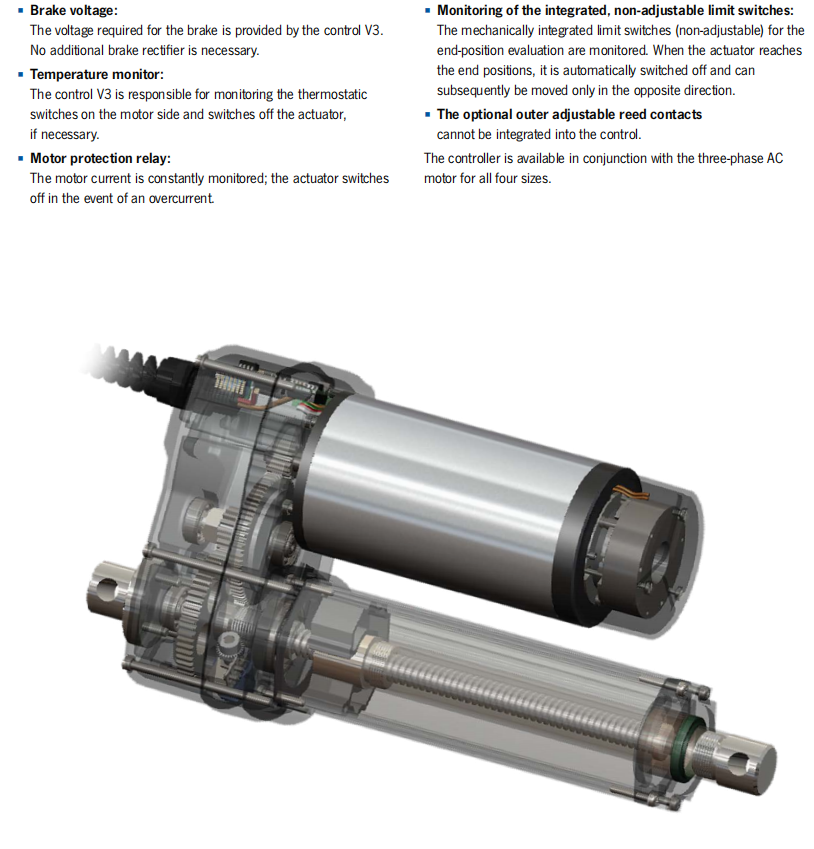

Option integrated control V3

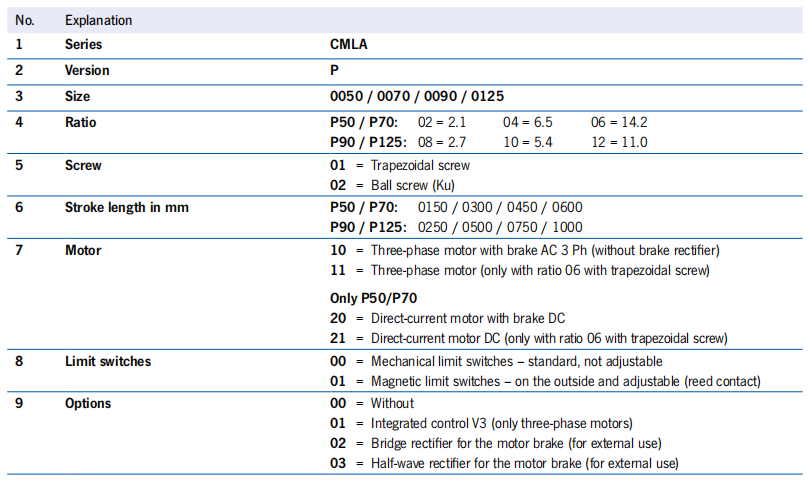

CMLA Order code
